Your safety is close to our hearts

A safety device is absolutely necessary at every gas take-up point. Messer Cutting Systems offers you a comprehensive program to DIN EN 730-1, DIN EN 561, as well as to ISO 5175 and ISO 7289. Regardless of whether they are for a cylinder pressure regulator, as outlet for a gas supply panel or directly on a hand or machine torch, the safety devices from Messer ensure your safety. The combination of gas shut-off valve (NV), flame arrestor (FA) and thermal gas cut-off system (TV) offer you the optimum protection against flash-backs and gas reverse flow.

We would be happy to consult with you to decide together which safety units are ideal for you.



Model Selection

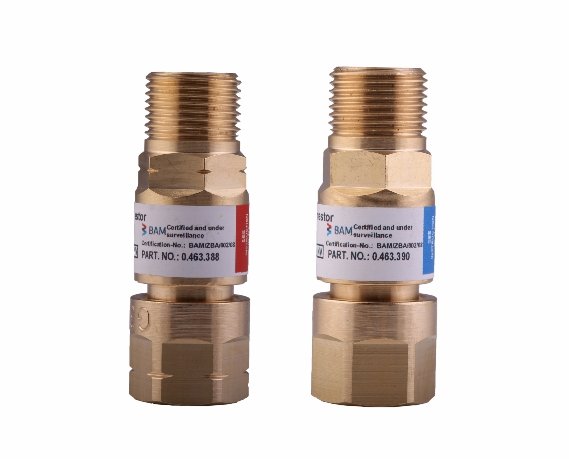

GG

  • Torch end Flashback Arrestor
  • Various connections as required
  • Operating pressure Oxygen: 25.0 bar
  • Operating pressure Fuel Gas (C2H2 / H2 / LPG): 1.5 / 4 / 4 bar
  • Flow rate Oxygen: up to 45 m³/h
  • Flow rate Fuel Gas (@1.5 bar) (C2H2 / H2 / LPG): up to 8.4 / 18 / 6 m³/h
  • Cutting Thickness: 200mm
  • Safety elements FA, NV & DF

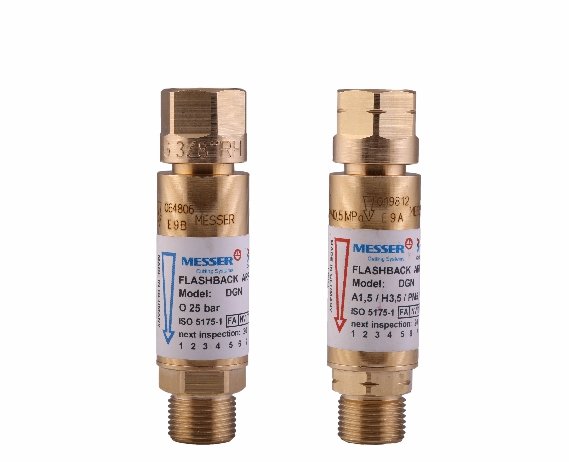

DGN

  • Regulator end Flashback Arrestor
  • Various connections as required
  • Operating pressure Oxygen: 25.0 bar
  • Operating pressure Fuel Gas (C2H2 / H2 / LPG): 1.5 / 3.5 / 5 bar
  • Flow rate Oxygen: up to 58 m³/h
  • Flow rate Fuel Gas (@1.5 bar) (C2H2 / H2 / LPG): up to 12 / 25 / 9 m³/h
  • Cutting Thickness: 200mm
  • Safety elements FA, NV, TV & DF

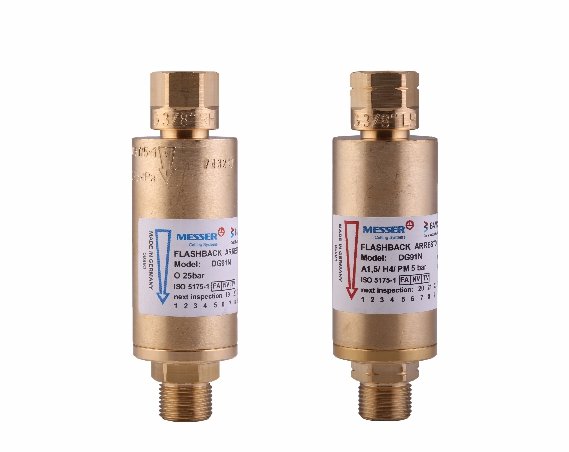

DG 91N

  • Regulator end Flashback Arrestor
  • Various connections as required
  • Operating pressure Oxygen: 25.0 bar
  • Operating pressure Fuel Gas (C2H2 / H2 / LPG): 1.5 / 4 / 5 bar
  • Flow rate Oxygen: up to 76 m³/h
  • Flow rate Fuel Gas (@1.5 bar) (C2H2 / H2 / LPG): up to 24 / 50 / 18 m³/h
  • Cutting Thickness: 700mm
  • Safety elements FA, NV, TV & DF

DG 91UA

  • Regulator end Flashback Arrestor
  • Various connections as required
  • Operating pressure Oxygen: 25.0 bar
  • Operating pressure Fuel Gas (C2H2 / H2 / LPG): 1.5 / 4 / 5 bar
  • Flow rate Oxygen: up to 76 m³/h
  • Flow rate Fuel Gas (@1.5 bar) (C2H2 / H2 / LPG): up to 24 / 50 / 18 m³/h
  • Cutting Thickness: 700mm
  • Safety elements FA, NV, TV & DF

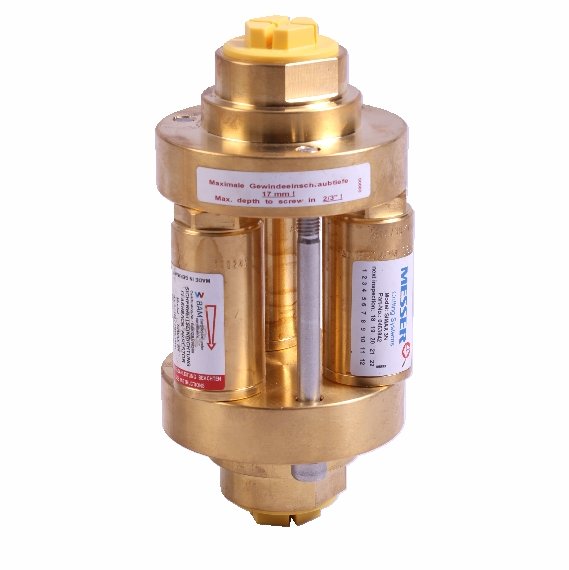

SIMAX 3

  • Flashback Arrestor for gas Manifold
  • Various connections as required
  • Operating pressure Oxygen: 25.0 bar
  • Operating pressure Fuel Gas (C2H2 / H2 / LPG): 1.5 / 3 / 5 bar
  • Flow rate Oxygen: up to 295 m³/h
  • Flow rate Fuel Gas (@1.5 bar) (C2H2 / H2 / LPG): up to 68 / 142 / 51 m³/h
  • Cutting Thickness: >700mm
  • Safety elements FA, NV & DF

Demax

  • Flashback Arrestor for gas Manifold
  • Various connections as required
  • Operating pressure Oxygen: 25.0 bar
  • Operating pressure Fuel Gas (C2H2 / H2 / LPG): 1.5 / 3 / 5 bar
  • Flow rate Oxygen: up to 223 m³/h
  • Flow rate Fuel Gas (@1.5 bar) (C2H2 / H2 / LPG): up to 54 / 113 / 40 m³/h
  • Cutting Thickness: >700mm
  • Safety elements FA, NV & DF
