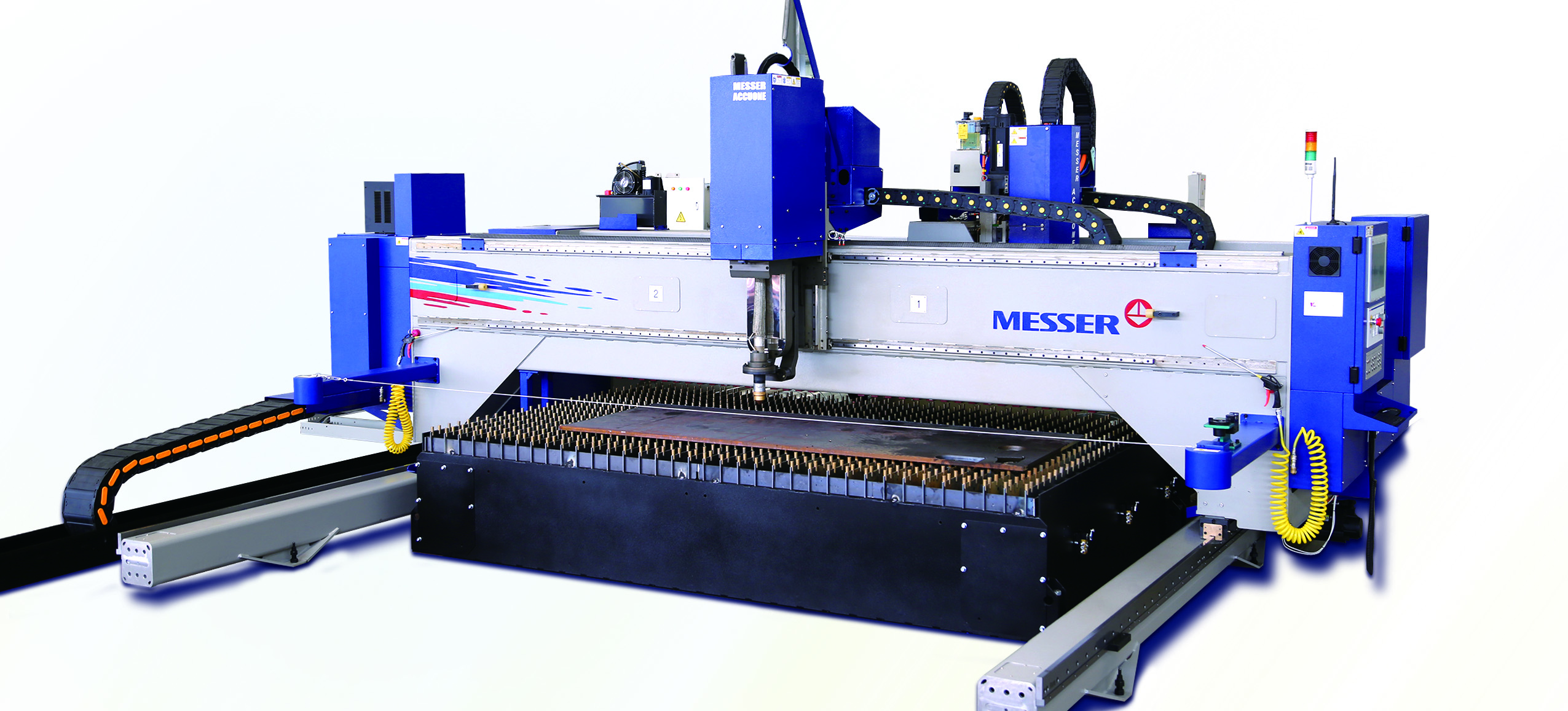

Innovative models with unique processes, combining high-precision plasma bevel cutting, high-speed drilling, tapping, milling and other functions on the same equipment. PLAMill GV is the machine which perfect combination of high running speed and high processing efficiency.

Key Features

  • Plamill GV is a unique plate processing machine for combined operation of:
    • Straight / Bevel Plasma cutting
    • Milling
    • Drilling
    • Tapping
    • Marking system.
  • Robust dual Gantry structure.
  • Compact design reduces space requirements.
  • High positioning speed of 50m/min in Y axis and 36 m/min in X axis.
  • High reliable Rexroth Bosch controller.



  • High performance spindle motor.
    • Rated torque 90Nm at 3000rpm/ Max 6000rpm.
    • Rated Power 29.2kW.
  • Spindle size: BT40.
  • Maximum drill Ø40mm.
  • Maximum Tap M24.
  • Maximum Helical drill Ø250.
  • 8 tools Automatic tool changer.
  • Specially designed copper pin grating table for effective plasma cutting and drilling.
  • Specialized rails with helical rack and gear for extremely smooth movement.
